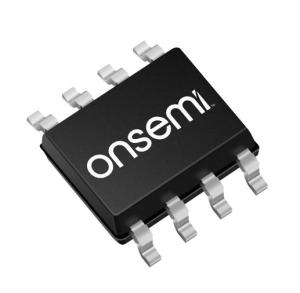

FOD3180SD

Product Category : Gate Drivers

Rise / Fall Time (Typ) : 75ns, 55ns

Voltage - Supply : 10 V ~ 20 V

Mounting Type : Surface Mount

Current - DC Forward (If) (Max) : 25mA

Manufacturer : onsemi

Minimum Quantity : 1000

Operating Temperature : -40°C ~ 100°C

Current - Peak Output : 2.5A

Common Mode Transient Immunity (Min) : 15kV/µs

Voltage - Isolation : 5000Vrms

Supplier Device Package : 8-SMD

Pulse Width Distortion (Max) : 65ns

Part Status : Active

Current - Output High, Low : 2A, 2A

Packaging : Tape & Reel (TR)

Number of Channels : 1

Voltage - Forward (Vf) (Typ) : 1.43V

Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns

Package / Case : 8-SMD, Gull Wing

Technology : Optical Coupling

Approvals : cUL, UL

Series : -

Description : OPTOISO 5KV 1CH GATE DRIVER 8SMD
